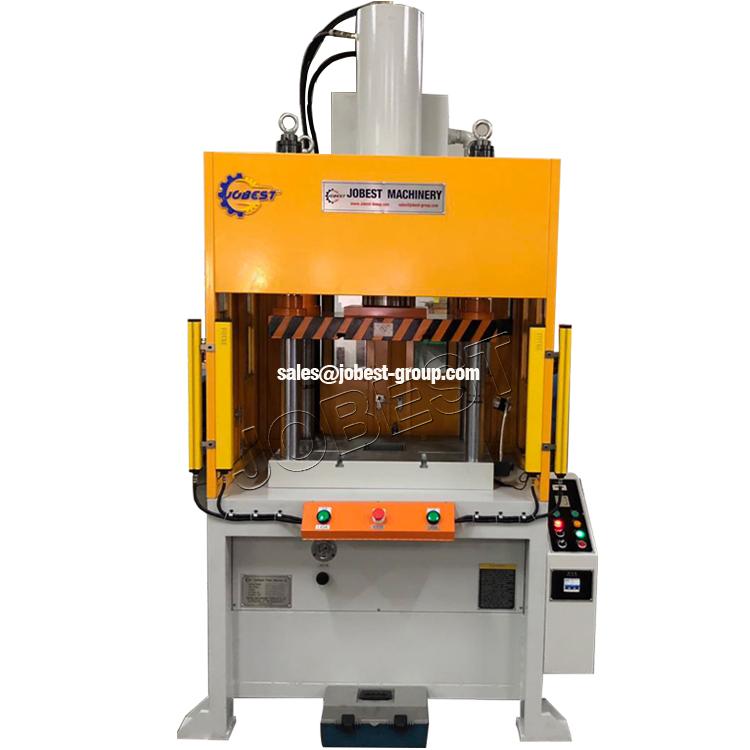

Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.
Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Application
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
Parameter
|
Item JBT-32 |
Nominal Force (KN) |
Ejecting force (KN) |
Max. working pressure (Mpa) |
Ram stroke (MM) |
Ejecting stroke (MM) |
Max open high (MM) |
Slider speed (MM/S) |
Working table size(MM) |
Dimensions (MM) |
|||
|
No-load working |
pressing |
return |
FB |
LR |
||||||||
|
40TON |
400 |
120 |
25 |
450 |
150 |
700 |
20 |
14 |
45 |
500 |
460 |
2000x1300x2600 |
|
63TON |
630 |
190 |
25 |
500 |
200 |
750 |
20 |
14 |
120 |
580 |
500 |
2400x1400x3100 |
|
100TON |
1000 |
190 |
25 |
600 |
220 |
880 |
22 |
14 |
47 |
720 |
580 |
2500x1500x2950 |
|
100BTON |
1000 |
190 |
25 |
600 |
200 |
880 |
120 |
14 |
120 |
720 |
580 |
2500x1500x2950 |
|
160TON |
1600 |
400 |
25 |
700 |
200 |
900 |
100 |
12 |
70 |
680 |
620 |
2700x1700x3400 |
|
160BTON |
1600 |
400 |
25 |
700 |
200 |
1000 |
100 |
12 |
70 |
1000 |
800 |
2800z1700x3400 |
|
200TON |
2000 |
400 |
25 |
700 |
250 |
1100 |
100 |
8 |
52 |
1000 |
900 |
3100x1800x3500 |
|
315TON |
3150 |
630 |
25 |
800 |
300 |
1250 |
100 |
8 |
60 |
1260 |
1200 |
3235x2060x4295 |
|
400TON |
4000 |
630 |
25 |
800 |
300 |
1250 |
100 |
7 |
45 |
1240 |
1200 |
3235x2200x4500 |
|
500TON |
5000 |
1000 |
25 |
900 |
350 |
1500 |
100 |
5 |
70 |
1400 |
1400 |
4060x3520x4995 |
|
500CTON |
5000 |
1000 |
25 |
900 |
350 |
1500 |
100 |
6 |
70 |
2400 |
1400 |
6500x3800x4740 |
